Front Seat Belt Guide Adjuster Replacement

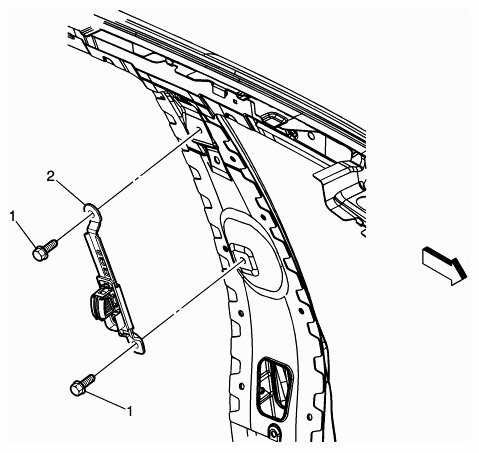

Fig 1: Identifying Front Seat Shoulder Belt Guide Adjuster Assembly And Mounting Bolt

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  Disable the SIR system. Refer to SIR DISABLING AND ENABLING . Remove the center pillar upper trim. Refer to CENTER PILLAR UPPER TRIM PANEL REPLACEMENT . Remove the front seat shoulder belt guide fastener, and position the belt out of the way. Refer to DRIVER OR PASSENGER SEAT RETRACTOR SIDE BELT REPLACEMENT .
1	Front Seat Shoulder Belt Guide Adjuster Bolt (Qty: 2) Refer to FASTENER CAUTION . Tighten  45 Nm (33 lb ft)
2	Front Seat Shoulder Belt Guide Adjuster Assembly
