Electronic Suspension Control Module Replacement

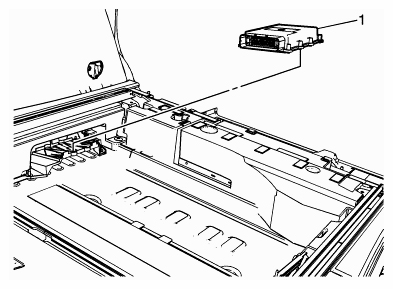

Fig 1: Identifying Electronic Suspension Control Module

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  Remove the rear compartment floor storage compartment. Refer to REAR COMPARTMENT FLOOR STOWAGE COMPARTMENT COVER REPLACEMENT
1	Electronic Suspension Control Module Procedure  Remove the electrical harness from the control module. Remove the control module from the mounting bracket.
