Engine Management And Fuel System, V6
>>
Wiring diagram
>>
Engine Controls Schematics (3.0L (LF1))
>>
Module Power, Ground, Serial Data, and Indicator
Module Power, Ground, Serial Data, and Indicator

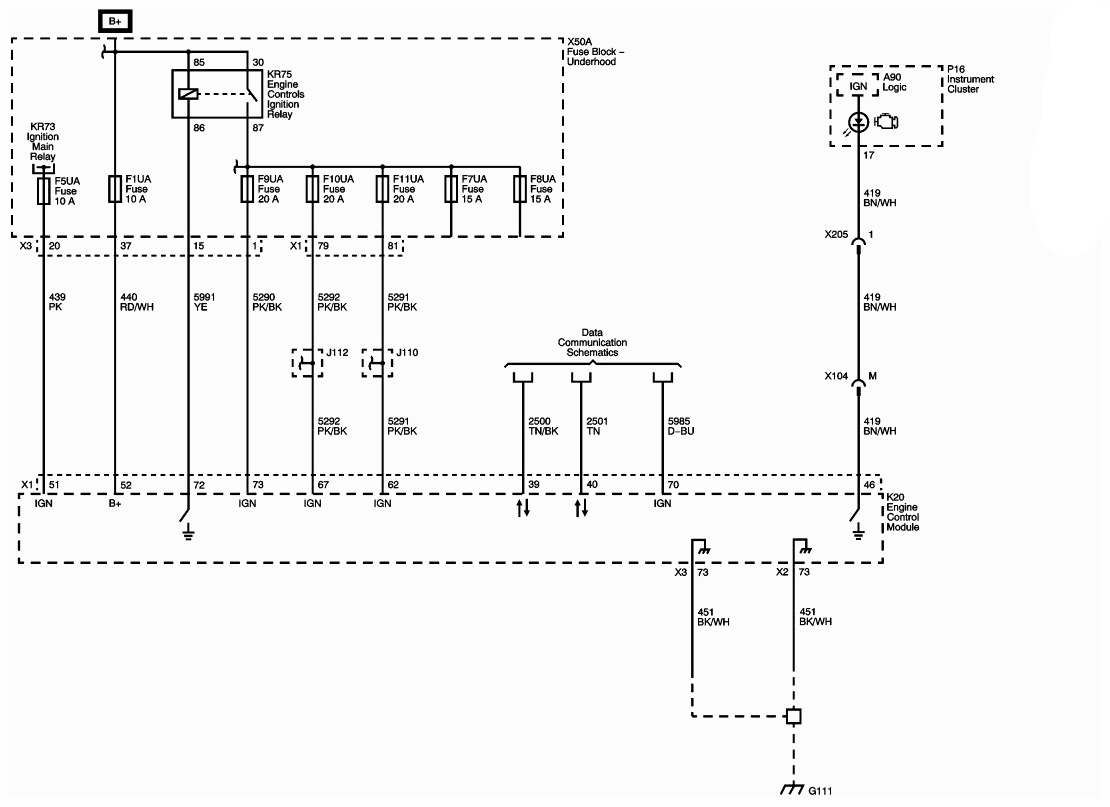

Fig 1: Engine Controls - Wiring Diagram (Module Power, Ground, Serial Data And Indicator) - 3.0L LF1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
