Installation Procedure

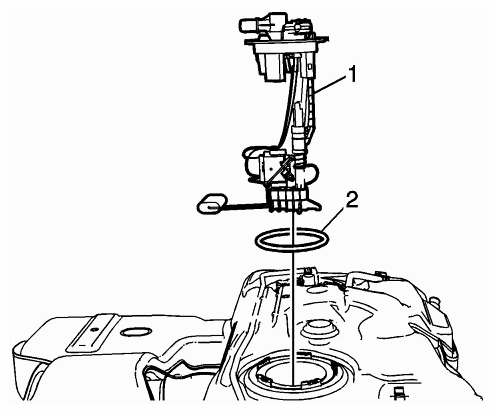

Install a NEW O-ring (2) and the primary fuel tank module (1).

Fig 1: Identifying Secondary Fuel Tank Module And O-Ring
Courtesy of SAAB-SCANIA OF AMERICA, INC.

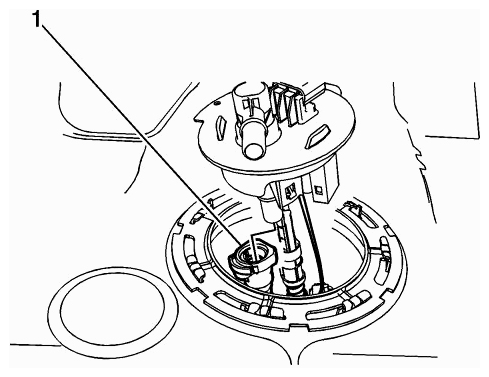

Partially install the secondary fuel pump module and connect the crossover tube (1).

Fig 2: Identifying Crossover Tube And Plastic Retaining Tab
Courtesy of SAAB-SCANIA OF AMERICA, INC.

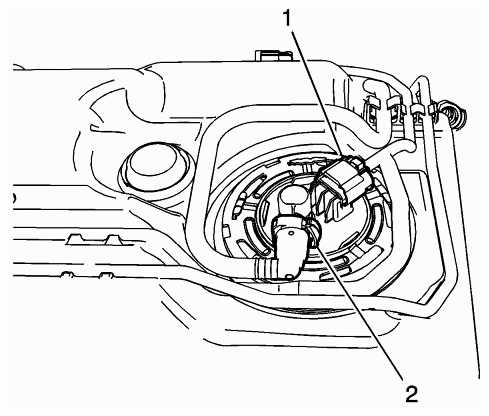

Connect the evaporative emission line (1). Refer to PLASTIC COLLAR QUICK CONNECT FITTING SERVICE .

Fig 3: Identifying Evaporative Emission Line
Courtesy of SAAB-SCANIA OF AMERICA, INC.

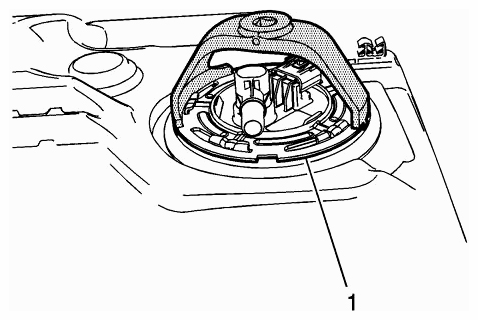

Using the CH 48482 wrench, install the cam lock ring (1) by turning clockwise.

Fig 4: Identifying Cam Lock Ring
Courtesy of SAAB-SCANIA OF AMERICA, INC.

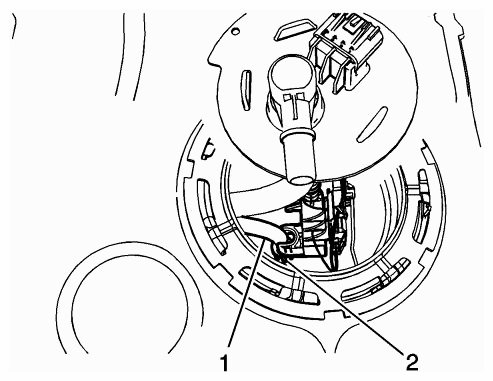

Connect the electrical connector (1).

Fig 5: Identifying Evaporative Emission Line And Connector
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Connect the evaporative emission line (2). Refer to PLASTIC COLLAR QUICK CONNECT FITTING SERVICE .
Install the fuel tank. Refer to FUEL TANK REPLACEMENT .
