Removal Procedure

WARNING: Fuel Vapors can collect while servicing fuel system parts in enclosed areas such as a trunk. To reduce the risk of fire and increased exposure to vapors:

Use forced air ventilation such as a fan set outside of the trunk.
Plug or cap any fuel system openings in order to reduce fuel vapor formation.
Clean up any spilled fuel immediately.
Avoid sparks and any source of ignition.
Use signs to alert others in the work area that fuel system work is in process.

Remove the primary fuel tank module. Refer to PRIMARY FUEL TANK MODULE REPLACEMENT (NA3, NE9, NF9) or PRIMARY FUEL TANK MODULE REPLACEMENT (NT7, NU5) .

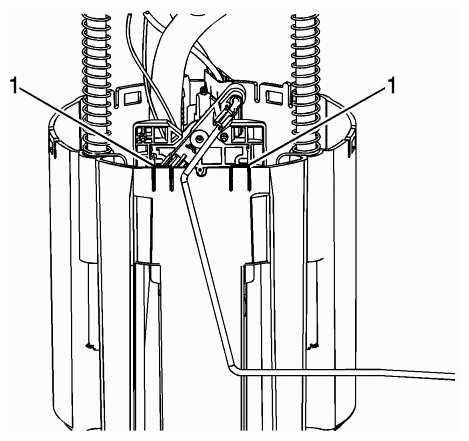

Fig 1: Identifying Level Sensor Locking Tab
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Using two flat-bladed tools, carefully pull both locking tabs (1) outward while simultaneously lifting the level sensor.
Using a small, flat-bladed tool, release the retaining tabs (1) while simultaneously pulling the electrical terminals out of the housing.

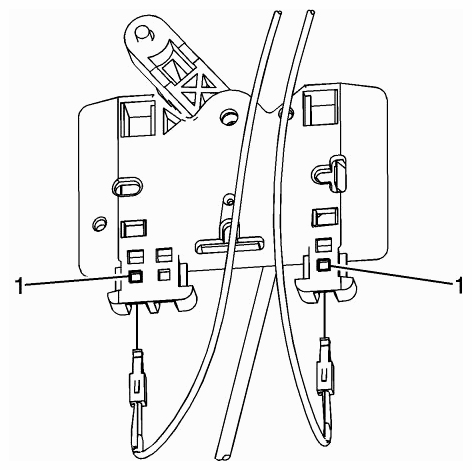

Fig 2: Identifying Level Sensor Retaining Tab

Courtesy of SAAB-SCANIA OF AMERICA, INC.
