Installation Procedure

Push in the electrical terminals (1) and ensure the terminals are secure.

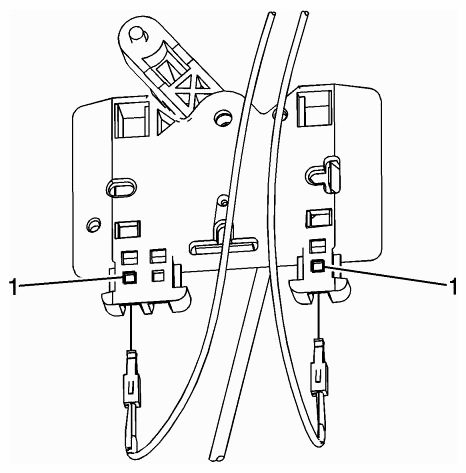

Fig 1: Identifying Level Sensor Retaining Tab
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Carefully insert the level sensor until the locking tabs (1) snap into the locking position.

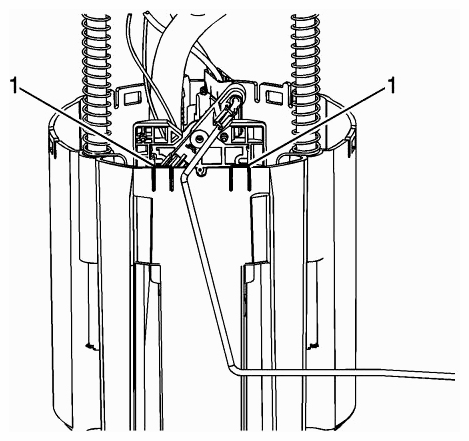

Fig 2: Identifying Level Sensor Locking Tab
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install the primary fuel tank module. Refer to PRIMARY FUEL TANK MODULE REPLACEMENT (NA3, NE9, NF9) or PRIMARY FUEL TANK MODULE REPLACEMENT (NT7, NU5) .
