Installation Procedure

Install the following components if fuel tank replacement was necessary:
- The primary fuel tank module-Refer to PRIMARY FUEL TANK MODULE REPLACEMENT (NA3, NE9, NF9) or PRIMARY FUEL TANK MODULE REPLACEMENT (NT7, NU5) .
- The secondary fuel tank module-Refer to Secondary Fuel Tank Module Replacement .
Raise the fuel tank (3) to the vehicle.

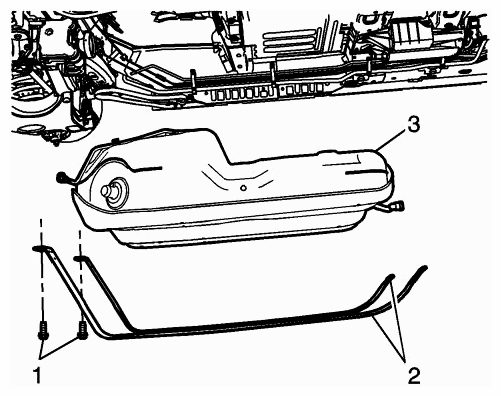

Fig 1: Identifying Evaporative Emission Line, Straps And Mounting Bolts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Refer to CAUTION: RETAINER
Ensure the fuel tank straps are seated properly. Install the fuel tank straps (2) and bolts (1) then tighten to 45 Nm (33 lb ft) .
Connect the evaporative emission line (1) to the canister.

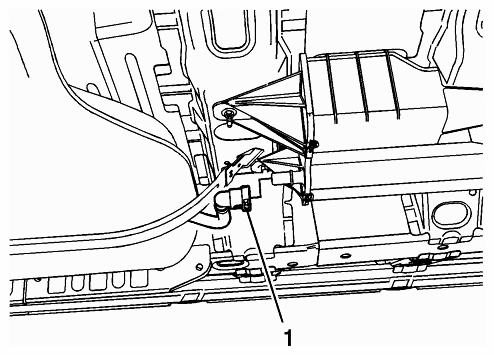

Fig 2: Identifying Evaporative Emission Line
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Connect the fuel tank electrical connector (1).

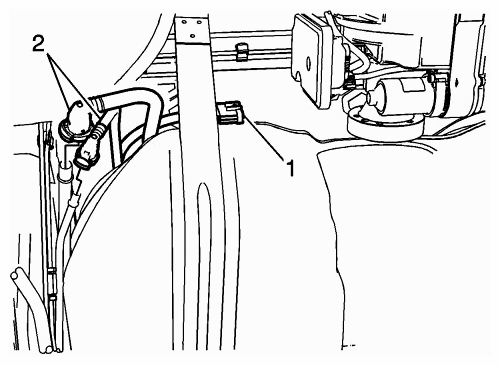

Fig 3: Identifying Fuel Tank And Evaporative Emission Line Connector
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Connect the fuel line and evaporative emission line connectors (2). Refer to PLASTIC COLLAR QUICK CONNECT FITTING SERVICE .
Connect the evaporative emission line (1). Refer to PLASTIC COLLAR QUICK CONNECT FITTING SERVICE .

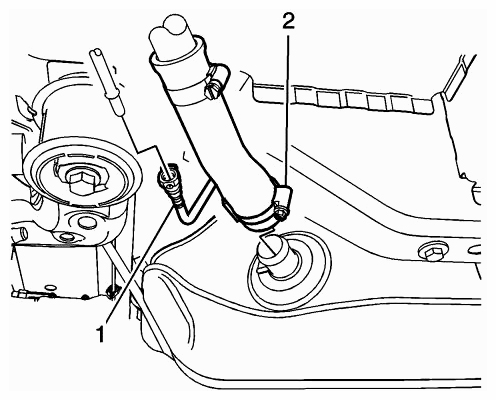

Fig 4: Identifying Evaporative Emission Line And Clamp
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install the filler pipe and tighten both hose clamps (2) to 5 Nm (44 lb in).
Perform a leak down test. Refer to EVAPORATIVE EMISSION SYSTEM DIAGNOSIS .
If required, install the propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT .
Install the exhaust system. Refer to EXHAUST MUFFLER REPLACEMENT (LAU) or EXHAUST MUFFLER REPLACEMENT (LF1) .
Refill the fuel tank.
Inspect for fuel leaks.
