Accelerator Pedal with Position Sensor Assembly Replacement

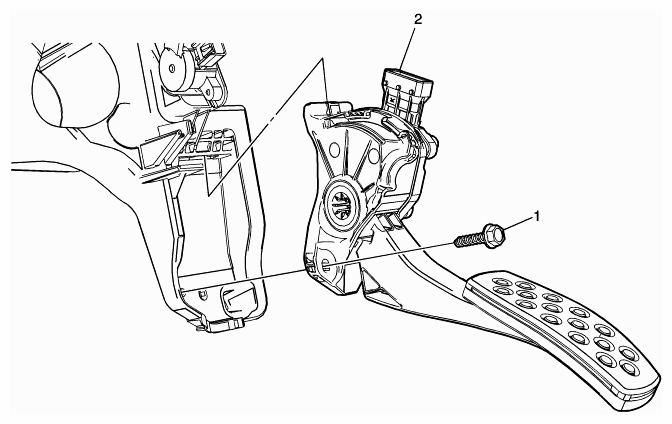

Fig 1: Identifying Accelerator Pedal Position Sensor Assembly And Mounting Bolt

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Accelerator Pedal Position Sensor Assembly Bolt Refer to CAUTION: RETAINER Tighten  9 N m (80 lb in)
2	Accelerator Pedal Position Sensor Assembly
