Engine Verification Label

The engine verification label is located in two places on the engine and consists of the broadcast code and bar code.

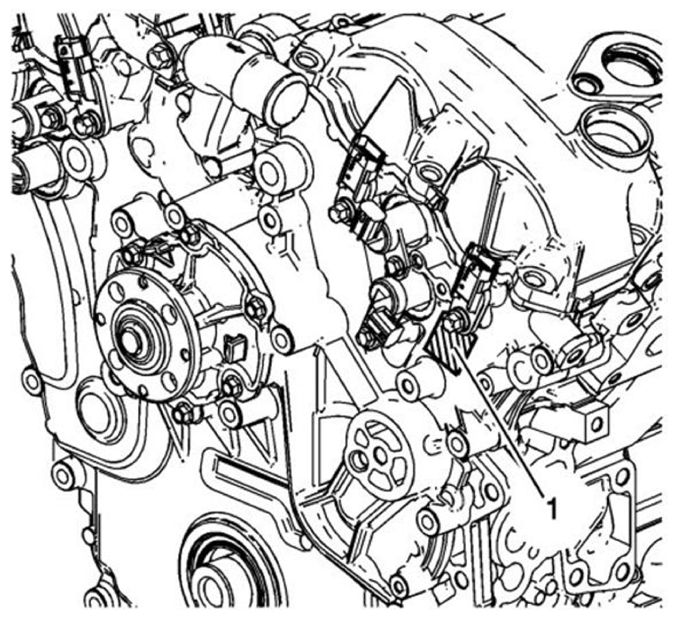

Fig 1: Identifying Engine Verification Label - Engine Left Side

Courtesy of SAAB-SCANIA OF AMERICA, INC.

One engine verification label (1) is located on the left side of the engine front cover below the exhaust camshaft position sensor.

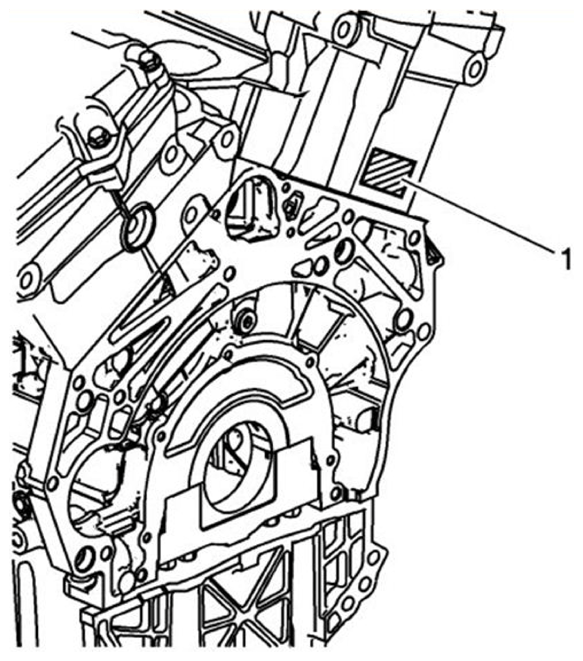

Fig 2: Identifying Engine Verification Label - Rear Of Right Cylinder Head

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Another engine verification label (1) is located on the rear of the right cylinder head.
