Engine Block Assembly (LF1)

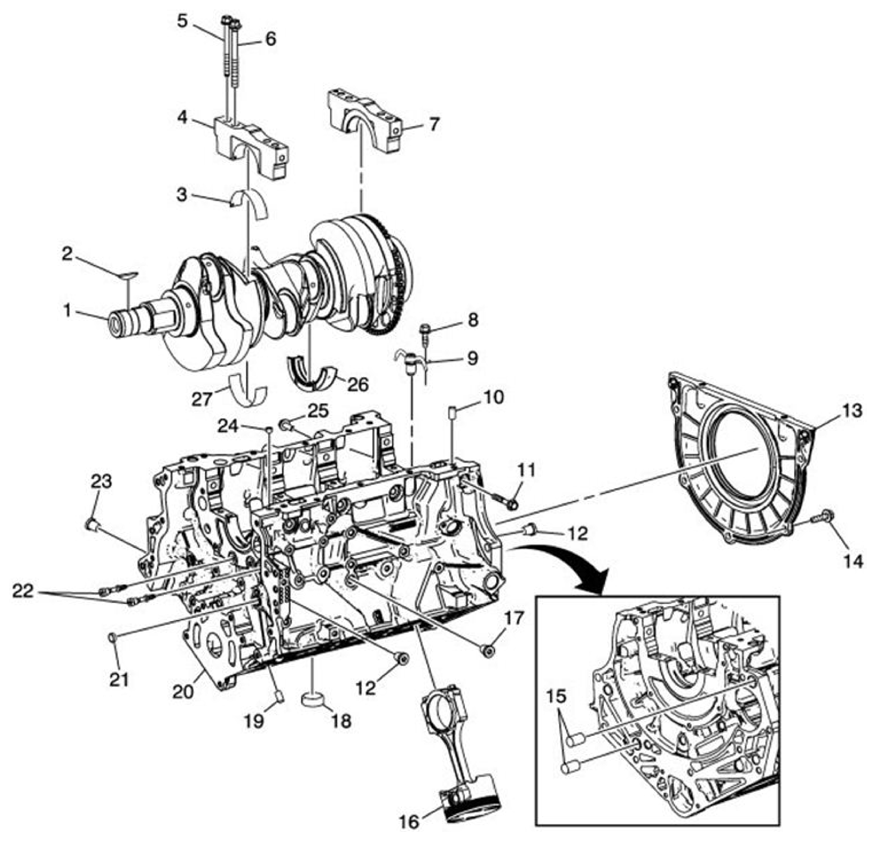

Fig 1: Identifying Engine Block Assembly (LF1)
G09400376Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Crankshaft
  2. Crankshaft Key
  3. Crankshaft Lower Bearing
  4. Crankshaft Bearing Cap
  5. Crankshaft Bearing Cap Outboard Bolt
  6. Crankshaft Bearing Cap Inboard Bolt
  7. Crankshaft Bearing Thrust Cap
  8. Piston Oil Nozzle Bolt
  9. Piston Oil Nozzle
  10. Oil Pan Locating Pin
  11. Crankshaft Bearing Cap Side Bolt - Long
  12. Engine Block Oil Gallery Threaded Plug - 14 mm
  13. Crankshaft Rear Oil Seal Housing Assembly
  14. Crankshaft Rear Oil Seal Housing Assembly Bolt
  15. Transaxle Locating Pin
  16. Piston and Connecting Rod Assembly
  17. Engine Block Coolant Drain Threaded Plug - 14 mm
  18. Engine Block Core Coolant Expansion Plug - 34.3 mm
  19. Cylinder Head Locating Pin
  20. Engine Block
  21. Engine Block Oil Gallery Expansion Plug - 14
  22. Engine Front Cover Stud
  23. Engine Block Oil Gallery Threaded Plug - 20 mm
  24. Engine Block Oil Gallery Expansion Plug - 10 mm
  25. Crankshaft Bearing Cap Side Bolt - Short
  26. Crankshaft Upper Thrust Bearing #3
  27. Crankshaft Upper Bearing
