Oil Pan Right Side

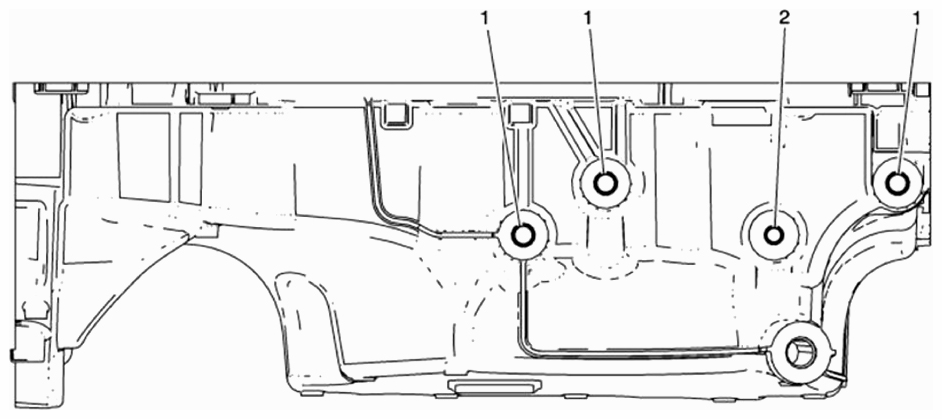

Fig 1: Identifying Oil Pan - Right Side

Courtesy of SAAB-SCANIA OF AMERICA, INC.

OIL PAN RIGHT SIDE SPECIFICATIONS

Hole Location	Thread Size	Drill	Counter Bore Tool	Stop Collar	Tap	Driver	Insert	Drill Depth (Maximum)		Tap Depth (Minimum)
		J 42385-						MM	(IN)	MM	(IN)
1	M12 x 1.75	856	857	N/A	858	859	855	39.5	1.5551	32.0	1.2598
2	M12 x 1.75	856	N/A	N/A	858	859	855	39.5	1.5551	32.0	1.2598
