Oil Pan Front

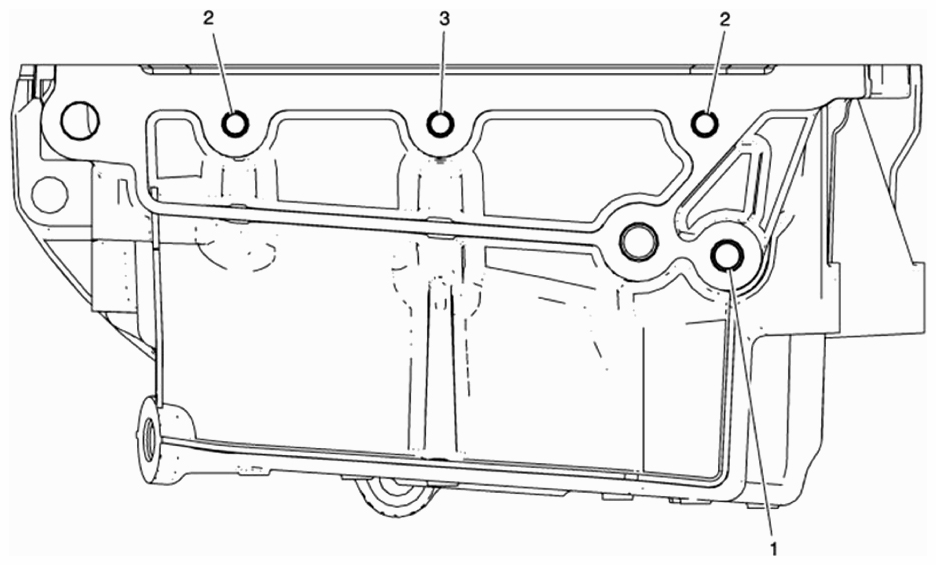

Fig 1: Identifying Oil Pan - Front

Courtesy of SAAB-SCANIA OF AMERICA, INC.

OIL PAN FRONT SPECIFICATIONS

Hole Location	Thread Size	Drill	Counter Bore Tool	Stop Collar	Tap	Driver	Insert	Drill Depth (Maximum)		Tap Depth (Minimum)
		J 42385-						MM	(IN)	MM	(IN)
1	M8 x 1.25	206	207	N/A	208	209	210	28.5	1.1220	23.0	0.9055
2	M10 x 1.5	211	212	N/A	213	214	215	33.5	1.3189	27.0	1.0630
3	M8 x 1.25	610	N/A	N/A	208	209	620	37.5	1.4764	32.0	1.2598
