Engine Block Right Deck Face

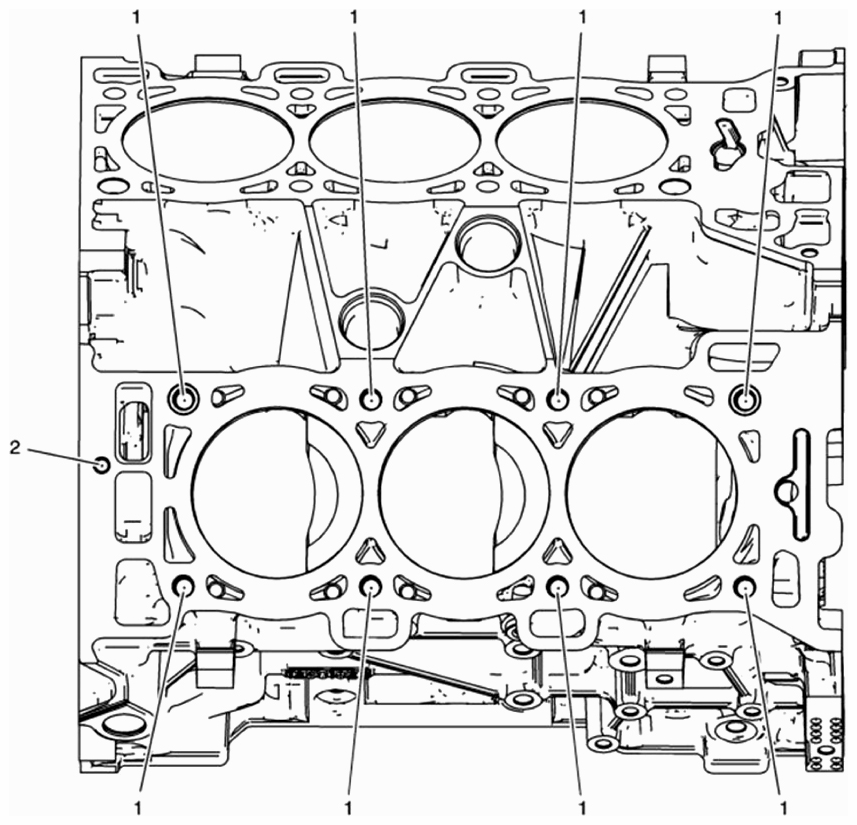

Fig 1: Identifying Engine Block - Right Deck Face

Courtesy of SAAB-SCANIA OF AMERICA, INC.

ENGINE BLOCK RIGHT DECK FACE SPECIFICATIONS

Hole Location	Thread Size	Drill	Counter Bore Tool	Stop Collar	Tap	Driver	Insert	Drill Depth (Maximum)		Tap Depth (Minimum)
		J 42385-						MM	(IN)	MM	(IN)
1	M11 x 2.0	723	N/A	N/A	724	725	108	102.5	4.0354	94.0	3.7008
2	M8 x 1.25	206	207	N/A	208	209	210	28.5	1.1220	23.0	0.9055
