Installation Procedure

  1. Install the NEW lower intake manifold gasket (3).

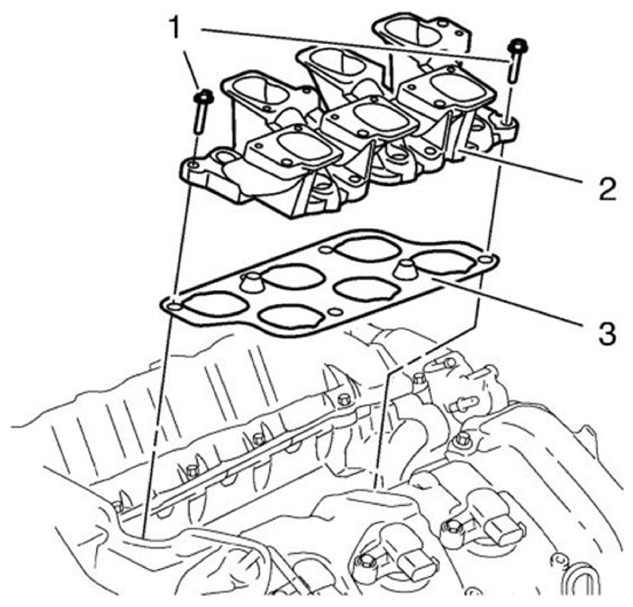

    Fig 1: Identifying Lower Intake Manifold Gasket And Bolts
    G09400449Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Install the lower intake manifold (2).
  3. Refer to FASTENER CAUTION .

    Install the two lower intake manifold bolts (1) and tighten to 23 Nm (17 lb ft).

  4. Install the fuel injector rail. Refer to FUEL INJECTOR REPLACEMENT .
  5. Install the upper intake manifold. Refer to UPPER INTAKE MANIFOLD REPLACEMENT .
  6. Fill the cooling system. Refer to COOLING SYSTEM DRAINING AND FILLING (GE 47716) or COOLING SYSTEM DRAINING AND FILLING (STATIC FILL LAU) or COOLING SYSTEM DRAINING AND FILLING (STATIC FILL LF1) .
