Installation Procedure

  1. Assemble the engine front cover. Refer to ENGINE FRONT COVER ASSEMBLE .
  2. Use the EN-46109  pins in order to install the engine front cover. Refer to ENGINE FRONT COVER INSTALLATION (LF1, LFW OR LFX)  or ENGINE FRONT COVER INSTALLATION (LAU OR LBW) .

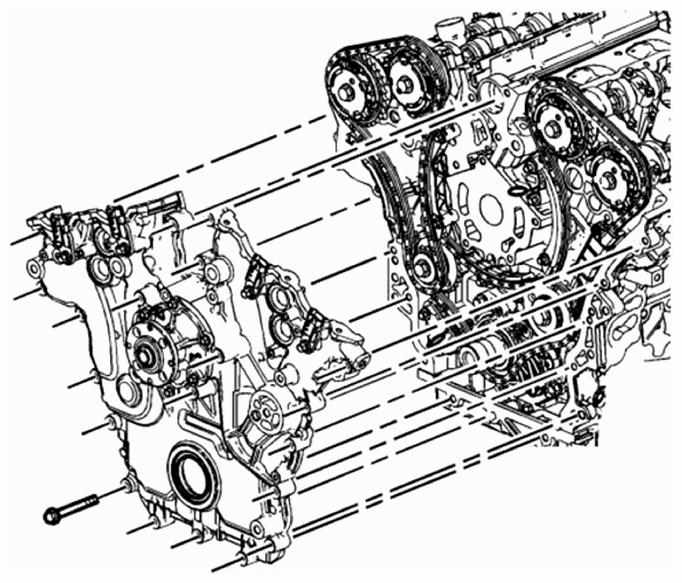

    Fig 1: Installing Engine Front Cover
    G09400502Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Install the camshaft position actuator solenoid valves to the front cover. Refer to CAMSHAFT POSITION ACTUATOR SOLENOID VALVE SOLENOID REPLACEMENT - BANK 1 (RIGHT SIDE) INTAKE , CAMSHAFT POSITION ACTUATOR SOLENOID VALVE SOLENOID REPLACEMENT - BANK 1 (RIGHT SIDE) EXHAUST , CAMSHAFT POSITION ACTUATOR SOLENOID VALVE SOLENOID REPLACEMENT - BANK 2 (LEFT SIDE) INTAKE , and CAMSHAFT POSITION ACTUATOR SOLENOID VALVE SOLENOID REPLACEMENT - BANK 2 (LEFT SIDE) EXHAUST .
  4. Install the camshaft position sensors. Refer to CAMSHAFT POSITION SENSOR REPLACEMENT - BANK 2 (LEFT SIDE) EXHAUST , CAMSHAFT POSITION SENSOR REPLACEMENT - BANK 2 (LEFT SIDE) INTAKE , CAMSHAFT POSITION SENSOR REPLACEMENT - BANK 1 (RIGHT SIDE) EXHAUST and CAMSHAFT POSITION SENSOR REPLACEMENT - BANK 1 (RIGHT SIDE) INTAKE .
  5. Install the crankshaft balancer. Refer to CRANKSHAFT BALANCER REPLACEMENT .
  6. Install the power steering pump. Refer to POWER STEERING FLUID RESERVOIR REPLACEMENT (LF1) .
  7. Install the power steering pump pulley. Refer to POWER STEERING FLUID RESERVOIR REPLACEMENT (LF1) .
  8. Install the power steering fluid reservoir. Refer to POWER STEERING FLUID RESERVOIR REPLACEMENT (LF1) .
  9. Install the generator bracket with the generator and the belt tensioner. Refer to GENERATOR REPLACEMENT (LAU) or GENERATOR REPLACEMENT (LF1) .
  10. Install the water outlet. Refer to WATER OUTLET REPLACEMENT (LAU) .
  11. Install the purge vent hose to the water outlet. Refer to ENGINE COOLANT AIR BLEED PIPE REPLACEMENT (LAU) or ENGINE COOLANT AIR BLEED PIPE REPLACEMENT (LF1) .
  12. Fill the cooling system. Refer to COOLING SYSTEM DRAINING AND FILLING (GE 47716) or COOLING SYSTEM DRAINING AND FILLING (STATIC FILL LAU) or COOLING SYSTEM DRAINING AND FILLING (STATIC FILL LF1) .
  13. Install the camshaft covers. Refer to CAMSHAFT COVER REPLACEMENT - LEFT SIDE (LAU)  or CAMSHAFT COVER REPLACEMENT - LEFT SIDE (LF1 OR LFW)  and CAMSHAFT COVER REPLACEMENT - RIGHT SIDE (LAU)  or CAMSHAFT COVER REPLACEMENT - RIGHT SIDE (LF1 OR LFW) .
  14. Install the intake manifold. Refer to INTAKE MANIFOLD REPLACEMENT .
  15. Install the drive belt tensioner. Refer to DRIVE BELT TENSIONER REPLACEMENT
  16. Fill the cooling system. Refer to COOLING SYSTEM DRAINING AND FILLING (GE 47716) or COOLING SYSTEM DRAINING AND FILLING (STATIC FILL LAU) or COOLING SYSTEM DRAINING AND FILLING (STATIC FILL LF1) .
