Battery Positive Fuse Block Cable Replacement

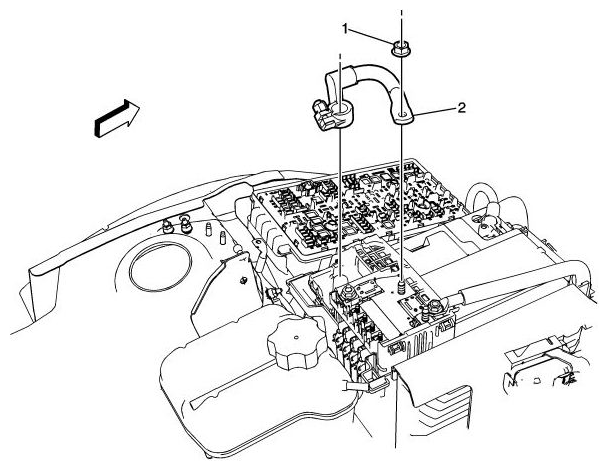

Fig 1: Removing Battery Positive Fuse Block Cable

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION . Open the battery fuse block cover. Remove the battery positive fuse block cable.
1	Nut Refer to CAUTION: RETAINER . Tighten  12 Nm (106 lb in)
2	Battery Positive Fuse Block Cable
