Installation Procedure

  1. Refer to CAUTION: RETAINER .

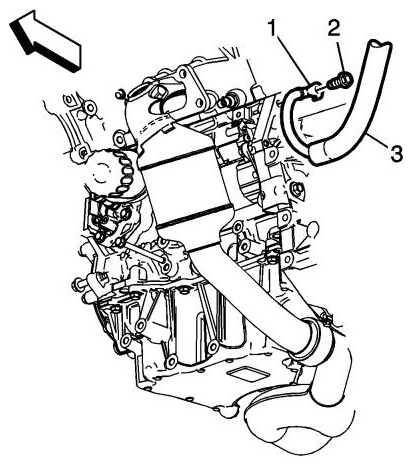

    Install the negative battery cable harness (3) to the engine block with retainer (1) and bolt (2). Tighten to 45 Nm (33 lb ft).

    Fig 1: Installing Negative Battery Cable Harness To Engine Block
    G09401764Courtesy of SAAB-SCANIA OF AMERICA, INC.

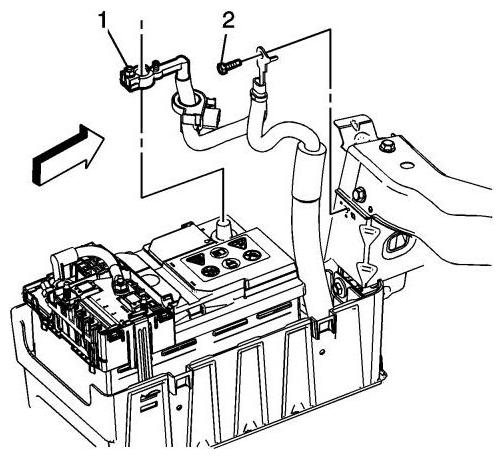

  2. Install the negative battery ground bolt (2) and retainer. Tighten to 22 Nm (16 lb ft).
    Fig 2: Installing Negative Battery Cable Harness To Engine Block With Retainer And Bolt
    G09401765Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Install the negative battery post clamp (1). Tighten to 9 Nm (80 lb in).
