Installation Procedure

Install the wheel speed sensor connector retainer to the rear suspension cradle.

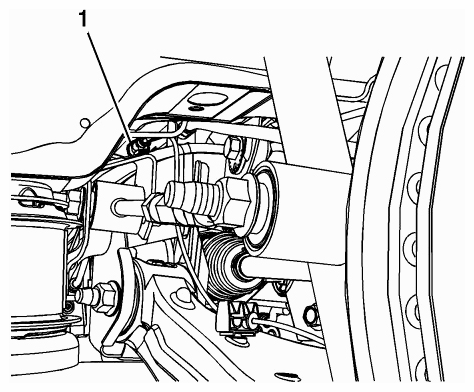

Fig 1: Identifying Wheel Speed Sensor Electrical Connector
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Connect the wheel speed sensor electrical connector (1).
Install the wheel speed sensor harness to the retainers (1).

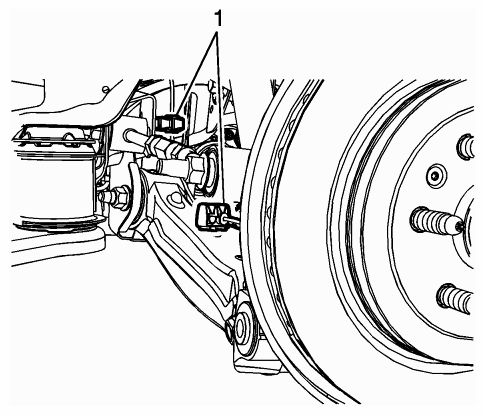

Fig 2: Identifying Wheel Speed Sensor Harness Retainers
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install the wheel speed sensor (1) to the rear suspension knuckle.

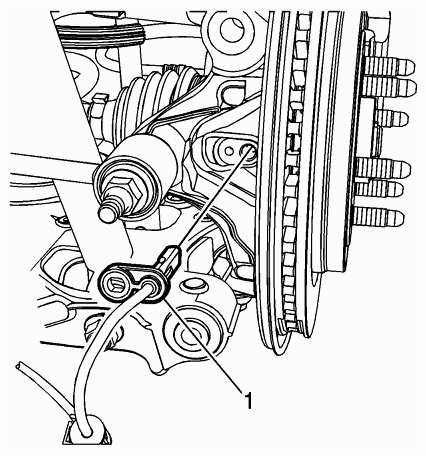

Fig 3: Identifying Wheel Speed Sensor
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Refer to CAUTION: RETAINER
Install the wheel speed sensor bolt (1) and tighten to 9 Nm (80 lb in).

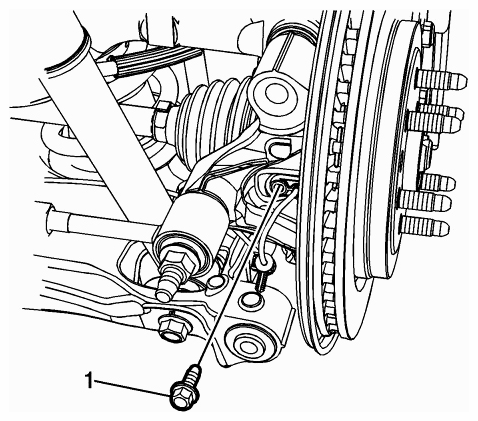

Fig 4: Identifying Wheel Speed Sensor Bolt
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install the rear suspension link. Refer to REAR SUSPENSION LINK REPLACEMENT - UPPER TO LOWER CONTROL ARM .
Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
Perform the DIAGNOSTIC SYSTEM CHECK - VEHICLE .
