Electronic Traction Control and Vehicle Stability Control Switch Replacement

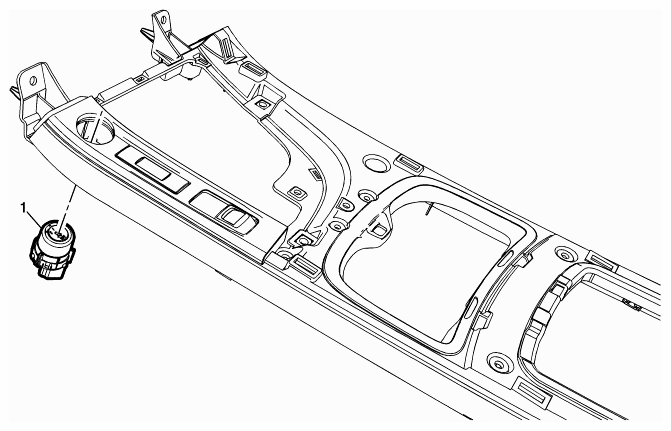

Fig 1: Identifying Electronic Traction Control And Vehicle Stability Control Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  Remove the front floor console trim plate. Refer to FRONT FLOOR CONSOLE TRIM PLATE REPLACEMENT .
1	Electronic Traction Control and Vehicle Stability Control Switch Procedure  Depress tabs to remove the switch assembly from the trim plate. Disconnect the electrical connector.
