Installation Procedure

Install the BPMV bracket (1).

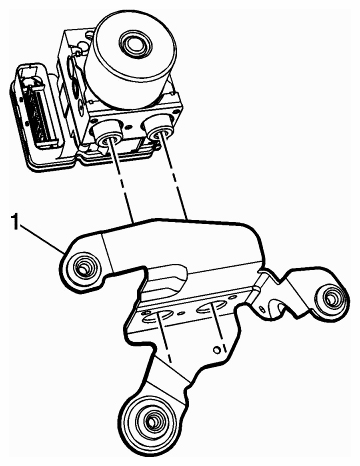

Fig 1: Identifying BPMV Bracket
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Refer to CAUTION: RETAINER
Install the BPMV bracket bolts (1) and tighten to 12 Nm (106 lb in).

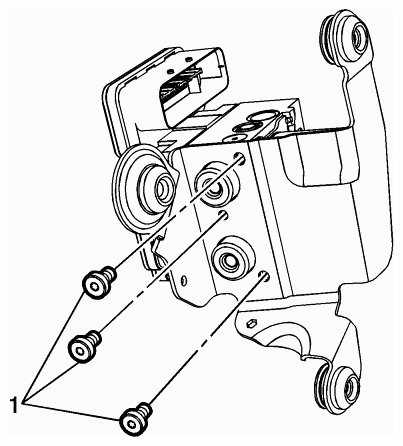

Fig 2: Identifying BPMV Bracket Bolts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the BPMV unit. Refer to BRAKE PRESSURE MODULATOR VALVE REPLACEMENT .
Install the radiator surge tank. Refer to RADIATOR SURGE TANK REPLACEMENT (LAU) or RADIATOR SURGE TANK REPLACEMENT (LF1) .
