Theft Deterrent Module Replacement

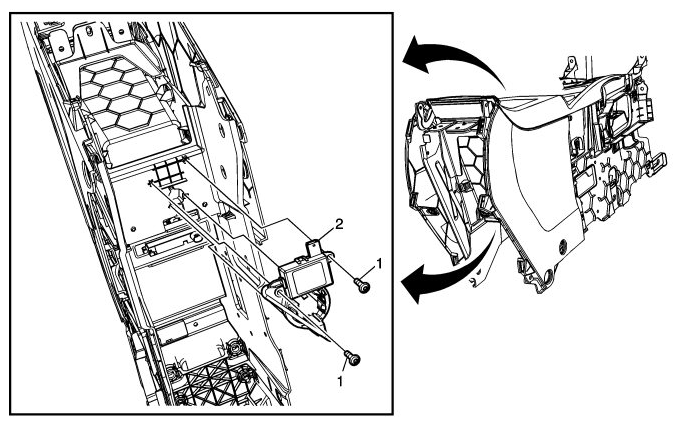

Fig 1: Identifying Theft Deterrent Module
G09401990Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedures
  1. Remove the front floor console. Refer to FRONT FLOOR CONSOLE REPLACEMENT .
  2. Remove the front floor console compartment. Refer to FRONT FLOOR CONSOLE COMPARTMENT REPLACEMENT .
1 Theft Deterrent Module Fastener (Qty: 2)
Refer to CAUTION: RETAINER .
2 Theft Deterrent Module
Procedure
  1. Disconnect the electrical connector.
  2. Disengage tabs and slide through opening.
  3. Refer to CONTROL MODULE REFERENCES for programming and set up procedures.
