Accessory and Liftgate Control Module Replacement

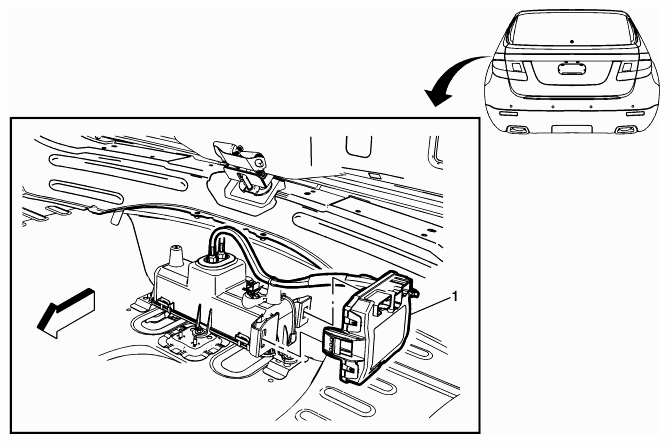

Fig 1: Removing Accessory And Liftgate Control Module

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  Remove the rear compartment floor stowage compartment. Refer to REAR COMPARTMENT FLOOR STOWAGE COMPARTMENT COVER REPLACEMENT .
1	Accessory and Liftgate Control Module Procedure  Disconnect the electrical connectors. Push in tabs to release module from the liftgate pump assembly. Reprogram the control module if replaced. Refer to CONTROL MODULE REFERENCES .
