Heater and Air Conditioning and Radio Control Module Replacement

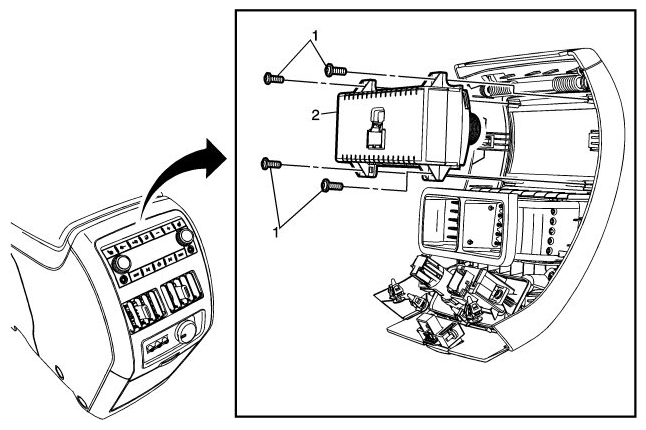

Fig 1: Identifying Heater, Air Conditioning, Radio Control Module And Mounting Screws

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  Remove the front floor console rear trim panel - upper. Refer to FRONT FLOOR CONSOLE REAR TRIM PANEL REPLACEMENT - UPPER .
1	Heater and Air Conditioning and Radio Control Module Screw (Qty: 4) Refer to CAUTION: RETAINER .
2	Heater and Air Conditioning and Radio Control Module
