Front and Rear Object Alarm Module Replacement

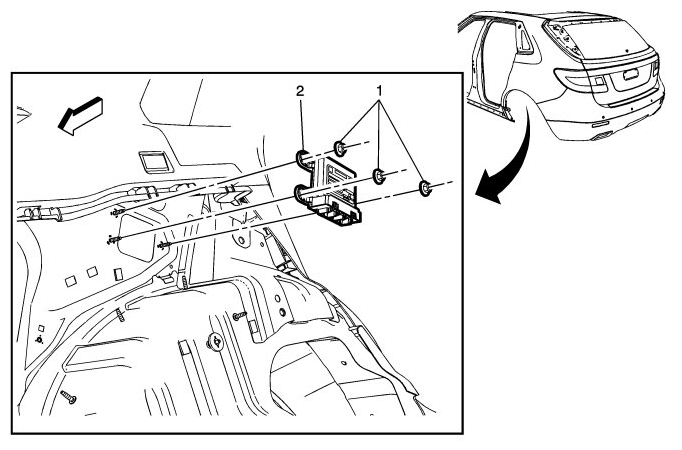

Fig 1: Identifying Front And Rear Object Alarm Module

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  Remove the left body side trim panel. Refer to BODY SIDE TRIM PANEL REPLACEMENT .
1	Front And Rear Object Alarm Module Nuts (Qty: 3) Refer to CAUTION: RETAINER . Tighten  6 N m (53 lb in)
2	Front And Rear Object Alarm Module Procedure  Disconnect the electrical connectors. For programming and set up, refer to CONTROL MODULE REFERENCES
