Dome and Reading Lamp Switch Replacement

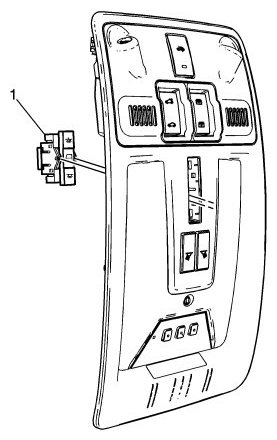

Fig 1: Removing Dome And Reading Lamp Switch
G09401806Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedures
Remove the roof console. Refer to ROOF CONSOLE REPLACEMENT .
1 Dome and Reading Lamp Switch
  1. Disconnect the electrical connector.
  2. Release the tabs and remove the switch.
