To remove

  1. Remove Airbag, driver (333D) from the steering wheel. See AIRBAG, DRIVER (333D) .
  2. Turn the steering wheel and wheels to the straight ahead position.
  3. Remove the connector.

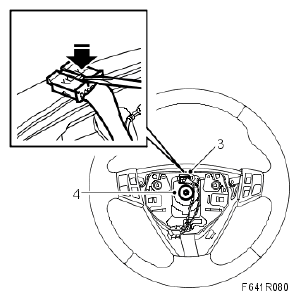

    Fig 1: Illustration For Steps 3-4
    G05061751Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the center bolt from the steering wheel and lift off the steering wheel.
