To fit

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .

Plug in the control module connector and fit the clip.

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.

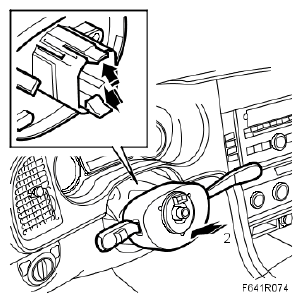

Fit the control module to the steering shaft.

Fig 2: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.

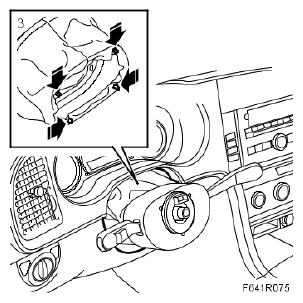

Fit the gaiter to the control module.

Fig 3: Illustration For Step 3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Make sure that the wheels are pointing straight ahead. Turn the contact roller so that the pointer is in the middle of the indicator opening.

Fig 4: Illustration For Step 13
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the Steering wheel .
Carry out "Procedure before removing the control module ".
