Brief description: Overview

4D, 5D:

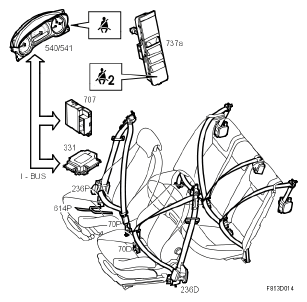

Fig 1: Seat Belt System Overview (4D, 5D)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

CV:

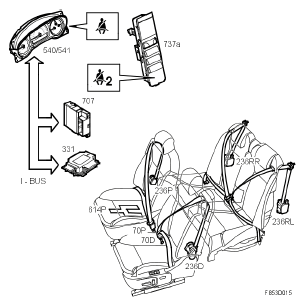

Fig 2: Seat Belt System Overview (CV)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Front seat-belt with belt tensioner (236D, 236P)
• Rear seatbelt with belt pretensioner (outer seats, CV) (236RL, 236RR)
• Front seat-belt buckle sensor (70D, 70P)
• Rear seat-belt buckle
• Airbag control module (331)
• Control module, BCM (707)
• SID (541)
• Main instrument display panel, MIU (540)
• Sensor, loaded seat cushion, front passenger seat (614P)
