Unit, steering column assembly, (CIM) (703)
Unit, steering column assembly, (CIM) (703)
Location:
on the steering column below the steering wheel
K8

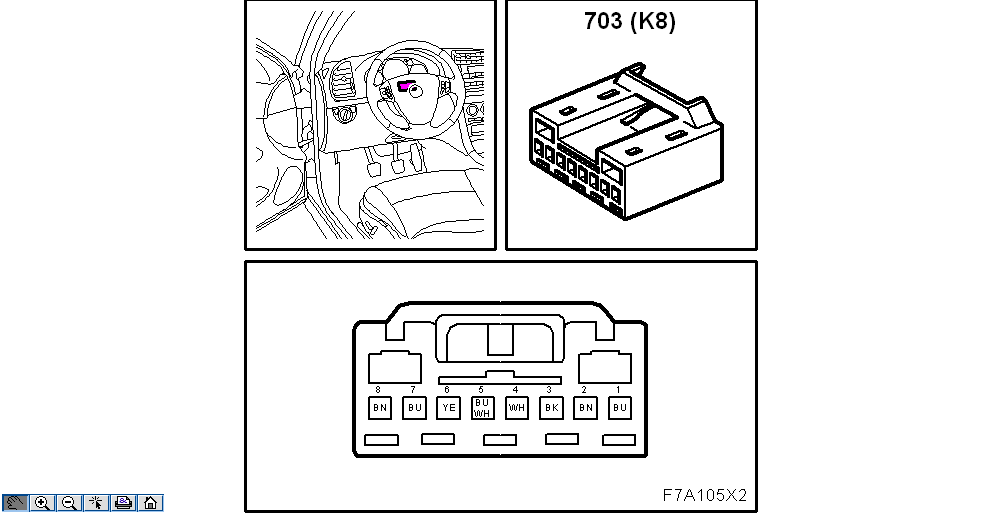

Fig 1: Identifying Unit, Steering Column Assembly, (CIM) (703) - K8
Courtesy of SAAB-SCANIA OF AMERICA, INC.
K25

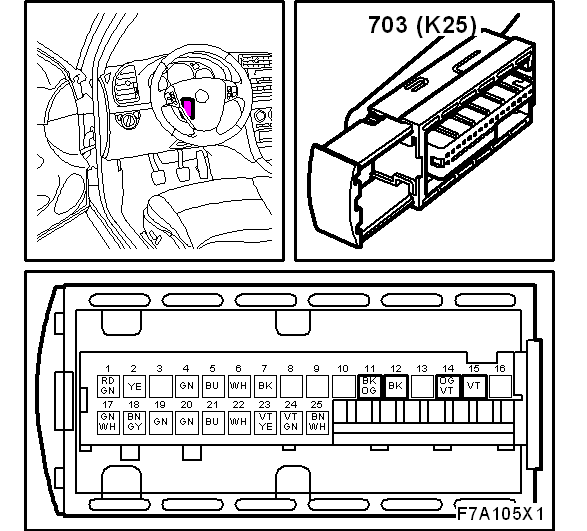

Fig 2: Identifying Unit, Steering Column Assembly, (CIM) (703) - K25
Courtesy of SAAB-SCANIA OF AMERICA, INC.
