Starter motor, B207

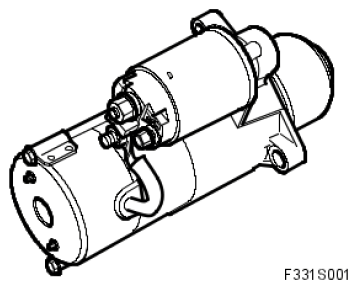

Fig 1: Identifying Starter Motor, B207
G05054317Courtesy of SAAB-SCANIA OF AMERICA, INC.
STARTER MOTOR SPECIFICATION

Type designation Delco
Power kW 1.8
No. of teeth on starter motor pinion 11
Number of teeth on ring gear 135
Ratio engine/starter motor 12.5:1

Test values

STARTER MOTOR TEST VALUES

Not under load, 11 V rpm 2900
A 80
Under load, 7.5 V rpm 1100
A 400
Lowest engaging voltage for the solenoid switch V 7
