Starting system (SCL), main components

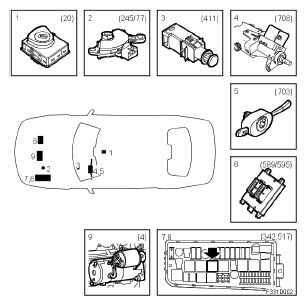

Fig 1: Identifying Starting System (SCL), Main Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Unit, ignition switch, ISM (20)
2. Transmission range switch/immobilizer switch, automatic (245/77)
3. Switch, coupling, immobilizer (411)
4. Unit, steering column lock (SCL) (708)
5. Column Integration Module, CIM (703a)
6. Engine Control Module (ECM)
7. Relay, +50 (517)
8. Underhood Electrical center, UEC (342)
9. Starter motor (4)
