TCM control module, AF40 (502b)
TCM control module, AF40 (502b)
Location:
On transmission casing
K16

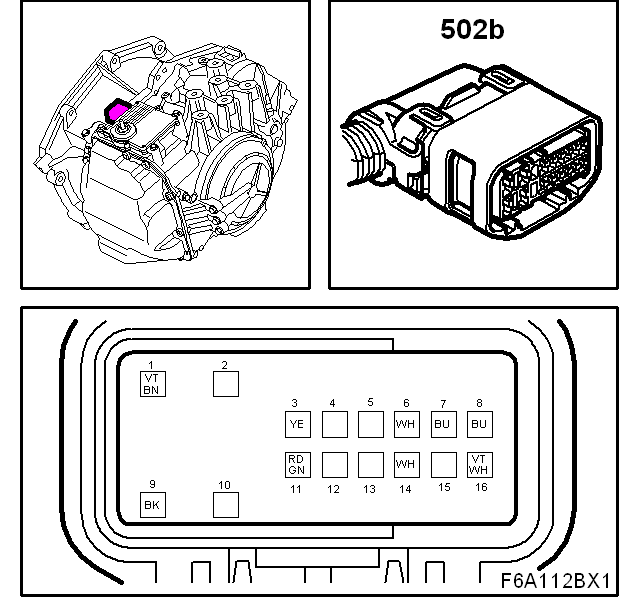

Fig 1: Identifying TCM Control Module, AF40 (502B) - K16
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
