Connected components

CONNECTED COMPONENTS

Via crimp connection J70, instrument harness
20 Ignition switch unit
361 Lamp, 12 V socket illumination
445 Data link connector, 16-pin, CARB
480C 12 V socket, cabin
707 Body control module, BCM
708 Unit, steering column lock
737a Switch panel
757C Relay, +15, IPEC

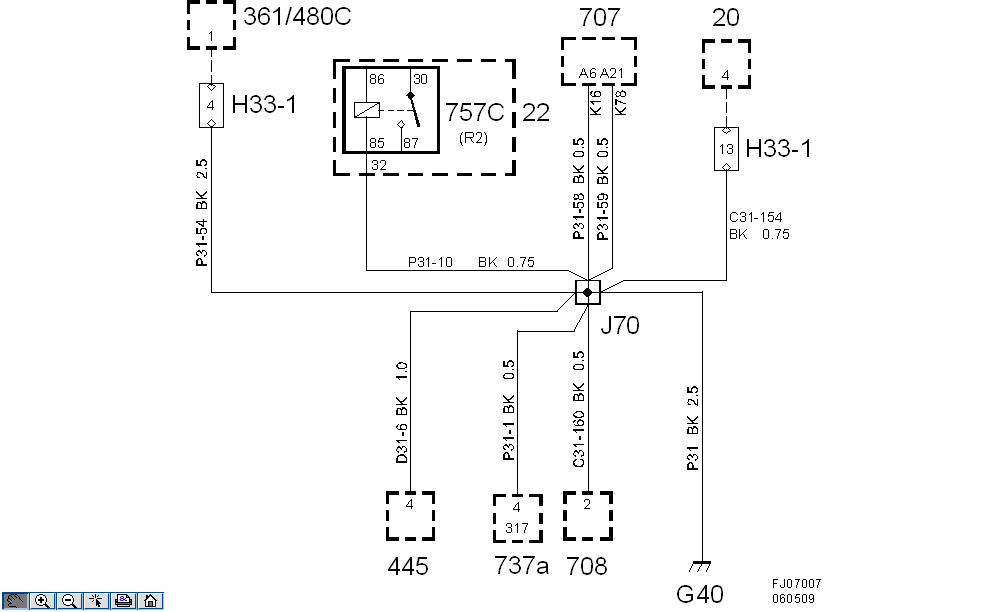

Fig 1: Grounding Point G40 - Circuit Diagram
G05171462Courtesy of SAAB-SCANIA OF AMERICA, INC.
