To remove

  1. Position the driver's seat as far forward as possible and tip the backrest forward.

    Cars with PPS:  Remove the cover on the belt force sensor. Unplug the belt force sensor connector.

  2. Remove the cover and seatbelt mounting from the seat.

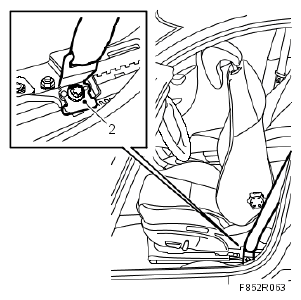

    Fig 1: Identifying Seatbelt Mounting
    G05065995Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the two rear retaining bolts from the seat.

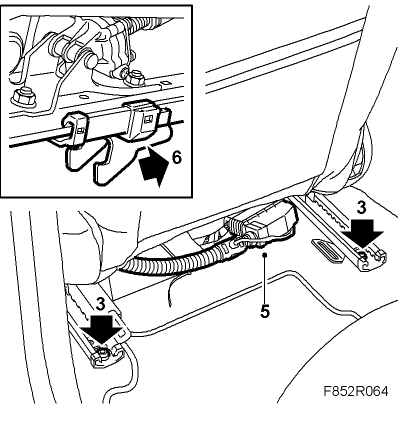

    Fig 2: Illustration For Step 3 And 5-6
    G05065996Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Tip the seat forward.
  5. Unplug the connector on the seat.
  6. Pull the seat back to unhook the mountings. Carefully remove the seat.
