Saab
>>
2011
>>
9-3X Standard
>>
Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Component Locator
>>
Connector H40-1
Connector H40-1
Location:
under the left seat

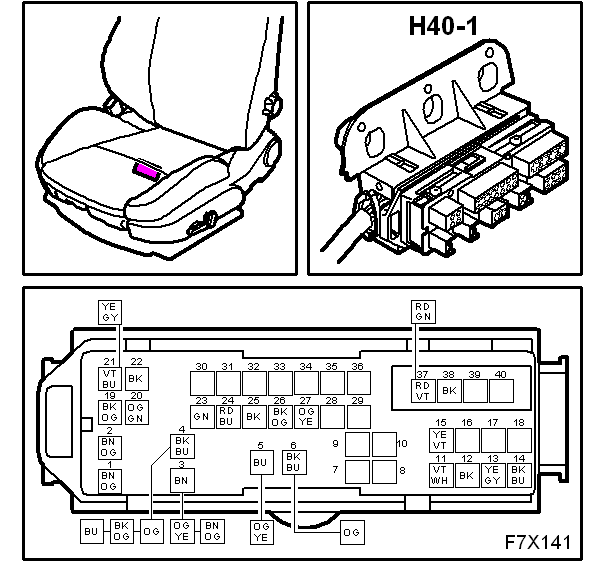

Fig 1: Identifying Connector H40-1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
