Automatic Climate Control (216)
Automatic Climate Control (216)
Location:
in the center of the dashboard
K18

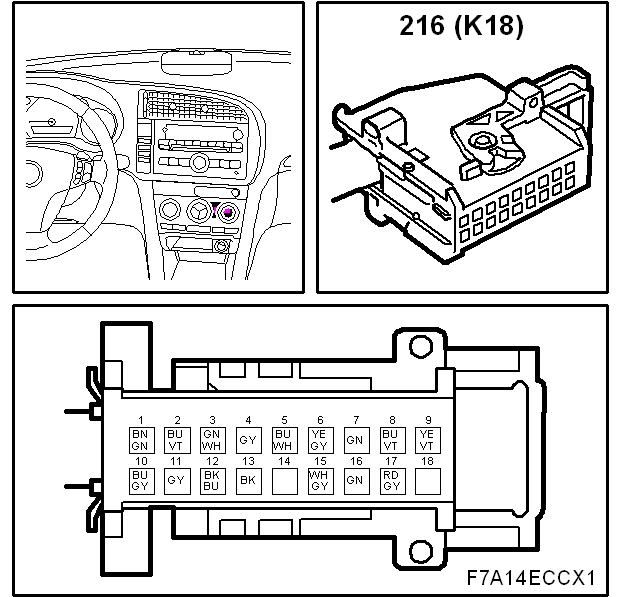

Fig 1: Identifying Automatic Climate Control - K18
Courtesy of SAAB-SCANIA OF AMERICA, INC.
K32

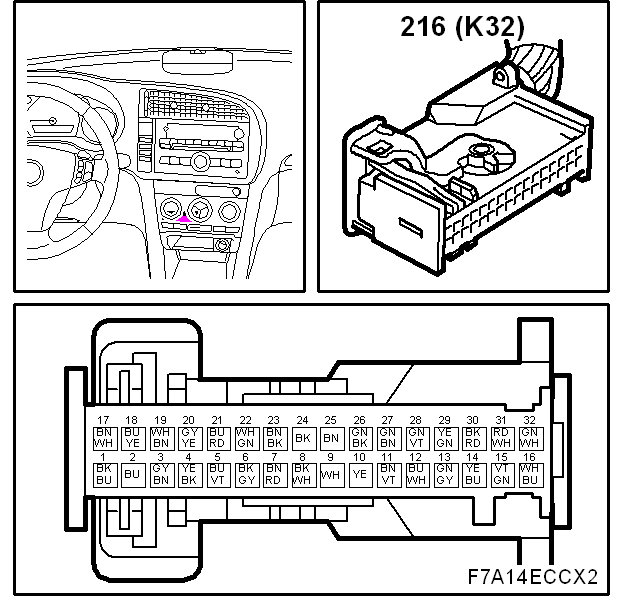

Fig 2: Identifying Automatic Climate Control - K32
Courtesy of SAAB-SCANIA OF AMERICA, INC.
