To remove

  1. Remove the gearbox, see Gearbox assembly B207 .

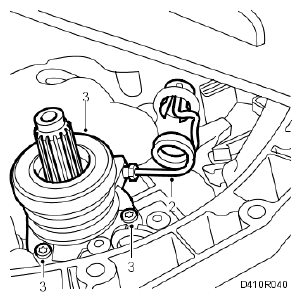

    Fig 1: Illustration For Step 2-3
    G05060127Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Detach the delivery pipe.
  3. Remove the three retaining bolts for the slave cylinder and pull it out.
