To remove

  1. Apply wing covers.
  2. Remove HYDRAULIC UNIT, TCS/ESP
  3. Connect 88 19 096 BLEEDING EQUIPMENT  hose to the bleed nipple on the slave cylinder and draw out the brake fluid from the clutch system.

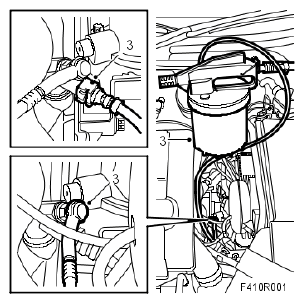

    Fig 1: Drawing Brake Fluid From Clutch System
    G05060091Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Undo the clip securing the delivery pipe to the master cylinder.
  5. Remove the delivery pipe from the master cylinder.
    Fig 2: Illustration For Step 4-7
    G05060092Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Detach the delivery pipe from the slave cylinder connection.
  7. Remove the pipe.
