To remove

  1. Raise the car.
  2. Remove the wheel. See WHEEL .
  3. Slacken the lock nut.

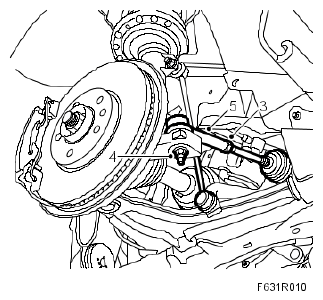

    Fig 1: Illustration For Steps 3-5
    G05061766Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the nut securing the track rod end to the steering swivel member.
  5. Part the track rod end from the steering swivel member with 87 91 287 PULLER, 150 MM .
  6. Unscrew the track rod end from the track rod, counting the number of turns.
