To fit

Put the seat belt's height adjustment into position and fit the screws.

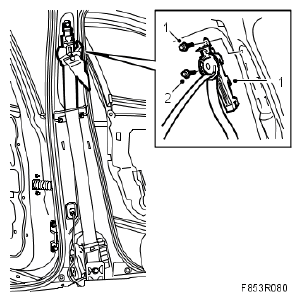

Fig 1: Illustration For Steps 1 And 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Tightening torque 37 Nm (27 lbf ft)
Fit the strap guide.
NOTE: Make a note of the washer location. The washer is marked R or L depending on which side is to be fitted.

Tightening torque 37 Nm (27 lbf ft)
Make sure that the height adjustment is in its lowest position.
Fit the B-pillar trim .
Check the operation of the seat belt.
