Injectors (206), T8
Courtesy of SAAB-SCANIA OF AMERICA, INC. INJECTORS REFERENCE CHART
| Engine type |
B207E, B207L |
B207R |
| Type |
Siemens, colour blue |
Siemens, colour green |

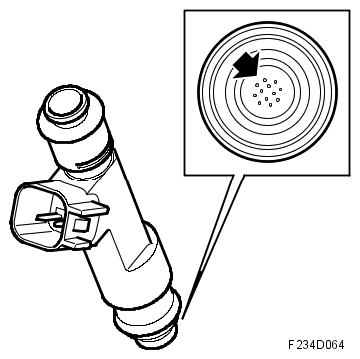

| Style |
multiple hole |
multiple hole |
| Resistance |
Ohm |
12 |
12 |
| Flow capacity |
ml/30 s |
134 ± 5 |
176 ± 7 |
Maximum permitted difference
between injectors |
ml/30 s |
10 |
14 |
