To remove

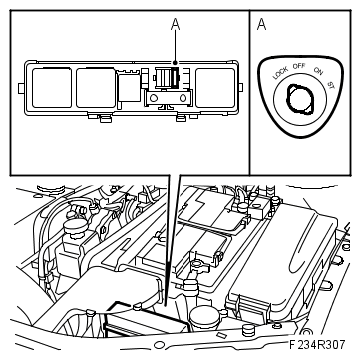

Reduce the fuel pressure by removing fuse 2 when the engine is running (fuse 2 is in the electrical centre in front of the battery). When the engine has stopped, turn the ignition key to LOCK and refit the fuse (A).

Fig 1: Identifying Fuse 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Drain the fuel tank. See EMPTYING THE FUEL TANK . Remove the tank cap.
Place the car on a lift.
Raise the car.
CV : Remove CHASSIS REINFORCEMENT, REAR SUBFRAME, CV , on right-hand side.

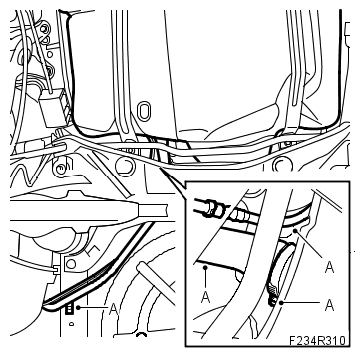

Remove the rubber mountings and carefully lower the exhaust system, support with 83 95 212 Strap (A).

Fig 2: Identifying Exhaust System Supporting Strap
Courtesy of SAAB-SCANIA OF AMERICA, INC.

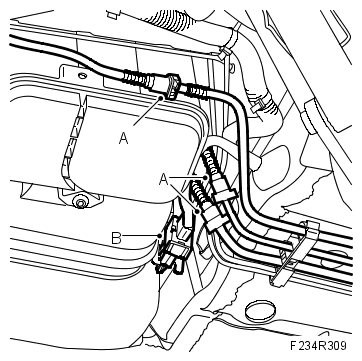

Disconnect the fuel and purge connections on the EVAP emission canister. Collect any fuel spill (A).

Fig 3: Identifying Fuel Spill
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Seal the connections to the outlet line from the fuel pump.
Unplug and detach the connector on the EVAP emission canister (B).

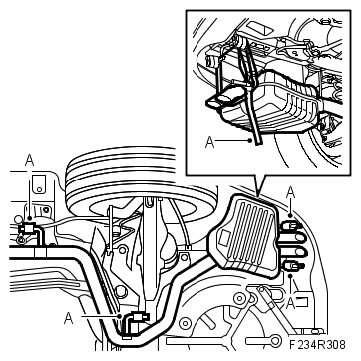

Remove the fuel filler pipe bolt and detach the hose between filler pipe and tank, and disengage the quick coupling (A) for the bleeder. Plug the tank's filler port.

Fig 4: Identifying Quick Coupling
Courtesy of SAAB-SCANIA OF AMERICA, INC.

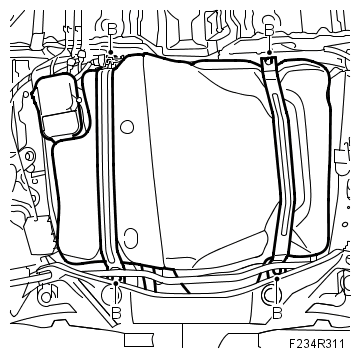

Place a column jack under the tank, remove the tank straps and fuel tank (B). Be careful when removing the tank - ensure that no components or connections are damaged.

Fig 5: Identifying Fuel Tank Straps
Courtesy of SAAB-SCANIA OF AMERICA, INC.
