Fuel lines tank - engine bay: Notes

WARNING: Removal of the fuel filter involves partial dismantling of the car's fuel system. The following points must therefore be observed in connection with this work:
  • Make sure a class BE fire extinguisher is close to hand! Consider the risk of sparking, e.g. when breaking circuits, short-circuits etc.
  • Absolutely No Smoking!
  • Ensure that there is a good exchange of air. If approved ventilation for the extraction of fuel fumes is available, this should be used.
  • Wear protective gloves! Prolonged exposure of the hands to fuel can cause irritation to the skin.
  • Wear protective goggles.
IMPORTANT: Be particularly observant regarding cleanliness when working on the fuel system. Loss of function may occur due to very small particles. Prevent dirt and grime from entering the fuel system by cleaning the connections and plugging pipes and lines during disassembly. Use 82 92 948 Plugs, A/C system assembly. Keep components free from contaminants during storage.
  1. Petrol engine:  Reduce the fuel pressure by removing fuse 2 while the engine is running (fuse 2 is located in the main fuse box in front of the battery). Once the engine has stopped, turn the ignition key to LOCK and refit the fuse.

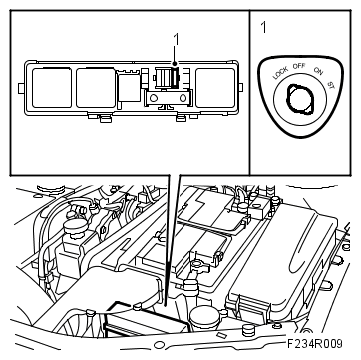

    Fig 1: Identifying Fuse 2
    G06230028Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the negative cable from the battery.
  3. Z19:  Remove the upper engine cover. Remove the panel cover. Press the centre pins out of the clips from the wheel housing side.

    B284:  Remove the upper engine cover and the upper turbocharger delivery pipe.

    B207 RHD:  Remove the air cleaner assembly.

  4. Separate the fuel lines in the engine bay, use 83 95 261 FUEL LINE TOOL  and plug the lines. Use 82 92 948 Plugs, AC-system kit. (B284 only has delivery line)

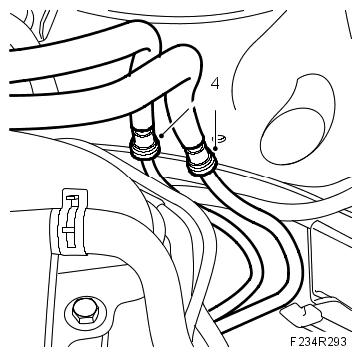

    Fig 2: Identifying Fuel Lines
    G06230029Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Raise the car.
  6. CV:  Remove CHASSIS REINFORCEMENT, FRONT SUBFRAME, CV, PETROL .
  7. Z19:  Remove Exhaust pipe, front. B207, B284:  Remove the exhaust pipe flange and unload the flexible section using 83 95 212 Strap.
  8. Remove the steering shaft joint from the steering gear.

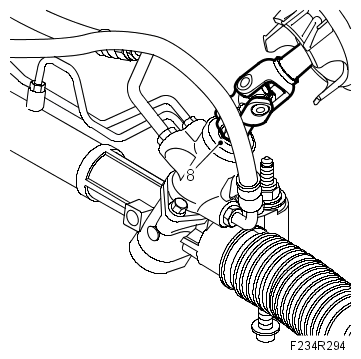

    Fig 3: Identifying Steering Shaft Joint
    G06230030Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Remove the rear torque arm bolt.

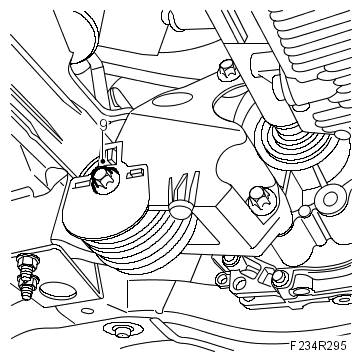

    Fig 4: Identifying Rear Torque Arm Bolt
    G06230031Courtesy of SAAB-SCANIA OF AMERICA, INC.
  10. B284 RHD:  Position a receptacle under the car and remove the power steering lines from the steering gear.

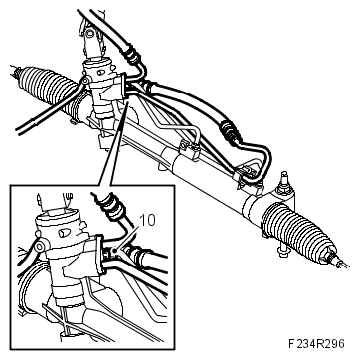

    Fig 5: Identifying Power Steering Lines
    G06230032Courtesy of SAAB-SCANIA OF AMERICA, INC.
  11. Unload the subframe using a pillar jack and remove the rear bolts and stays.

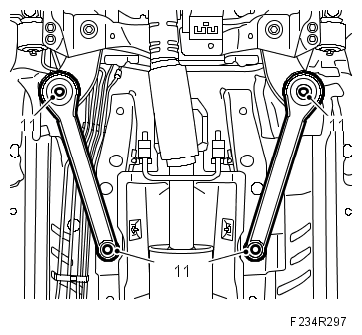

    Fig 6: Identifying Subframe Rear Bolts
    G06230033Courtesy of SAAB-SCANIA OF AMERICA, INC.
  12. Lower the subframe at the rear.
  13. Undo the fuel lines from their holders and the brake pipes from the front holders.

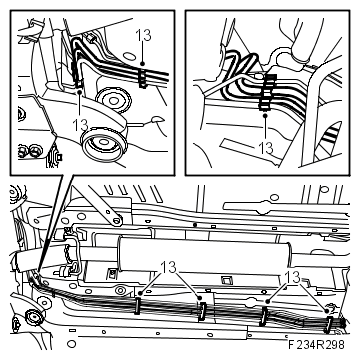

    Fig 7: Identifying Fuel Lines, Holder And Brake Pipes
    G06230034Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Be careful that the brake pipes do not get damaged.
  14. Position a receptacle under the car and unplug the fuel lines at the fuel tank and plug them. For diesel and EU tank, use 83 95 261 FUEL LINE TOOL .

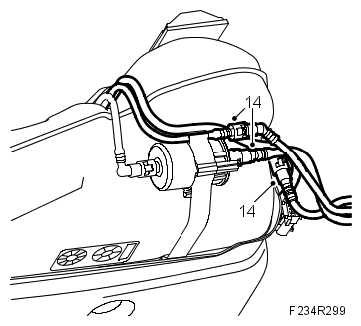

    Fig 8: Identifying Fuel Tank Fuel Lines
    G06230035Courtesy of SAAB-SCANIA OF AMERICA, INC.
  15. Lower the pipes.
