To fit

  1. Fit a new hose to the filler pipe.
  2. Fit the filler pipe. Tighten the clamp's bolt.

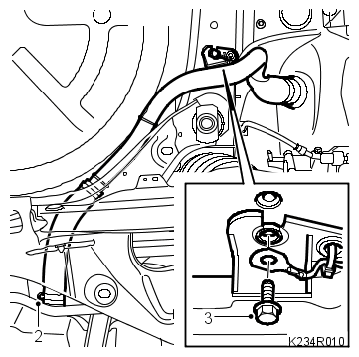

    Fig 1: Illustration For Steps 2-3
    G06229928Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the filler pipe's and the ground cable's bolt (cars with plastic pipe).
  4. Lower the car.
  5. Fit the fuel filler flap.
  6. Fit the REAR WING LINER .
  7. Fit the Wheel.
