To remove

  1. Remove SOLENOID, FUEL FILLER FLAP, 4D (434 A) , SOLENOID, FUEL FILLER FLAP, CV (434A) or SOLENOID, FUEL FILLER FLAP, 5D (434 A) .
  2. Remove the REAR WING LINER .
  3. Remove the bolt holding the tank filler pipe.

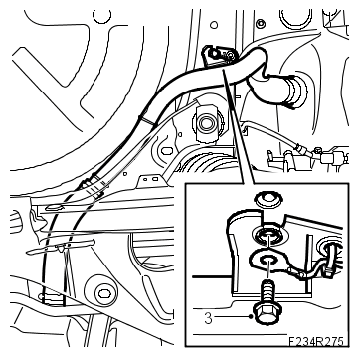

    Fig 1: Identifying Bolt Holding Tank Filler Pipe
    G06230053Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the fuel filler flap.
  5. Remove the tank filler pipe from the filler cap connecting pipe.

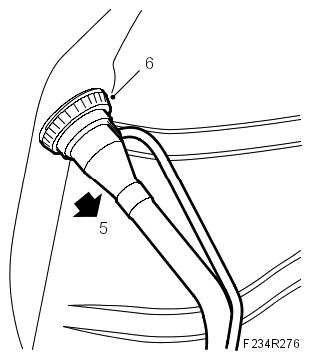

    Fig 2: Illustration For Steps 5-6
    G06230054Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the filler cap connecting pipe from the inner panel's hole.
  7. Remove the fuel filler flap.
  8. Remove the filler cap sleeve using 82 93 474 Removal tool. Start removing from the rear edge of the filler cap sleeve so that the locking clips disengage.
    Fig 3: Locating Rear Edge Of Filler Cap Sleeve
    G06230055Courtesy of SAAB-SCANIA OF AMERICA, INC.
