To remove

  1. Remove SOLENOID, FUEL FILLER FLAP, 4D (434 A) or SOLENOID, FUEL FILLER FLAP, 5D (434 A) .
  2. Remove REAR WING LINER .
  3. Remove the bolt (A) holding the fuel filler pipe in place.

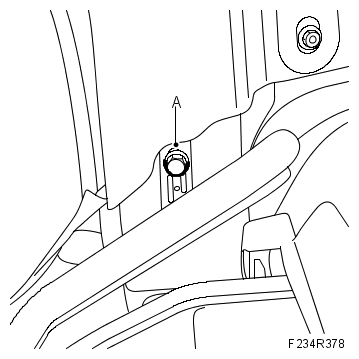

    Fig 1: Identifying Bolt Holding Fuel Filler Pipe
    G06230083Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the fuel filler flap.
  5. Detach the fuel filler pipe (A) from the filler cap sleeve.

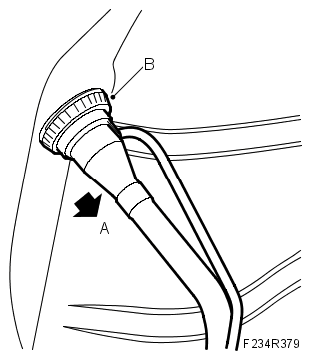

    Fig 2: Detaching Fuel Filler Pipe
    G06230084Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the filler cap sleeve (B) from the inner plate hole.
  7. Remove the fuel filler flap.
  8. Remove the filler cap sleeve (A) using 82 93 474 Removal tool. Start removing from the rear edge of the filler cap sleeve so that the retaining clips disengage.
    Fig 3: Locating Filler Cap Sleeve
    G06230085Courtesy of SAAB-SCANIA OF AMERICA, INC.
