Crimp connection J70, instrument harness: Notes

Location:

LHD:  Approx. 290 mm from branching of light switch unit to column integration module

RHD:  Approx. 360 mm from branching of grounding point G40 to grounding point G41

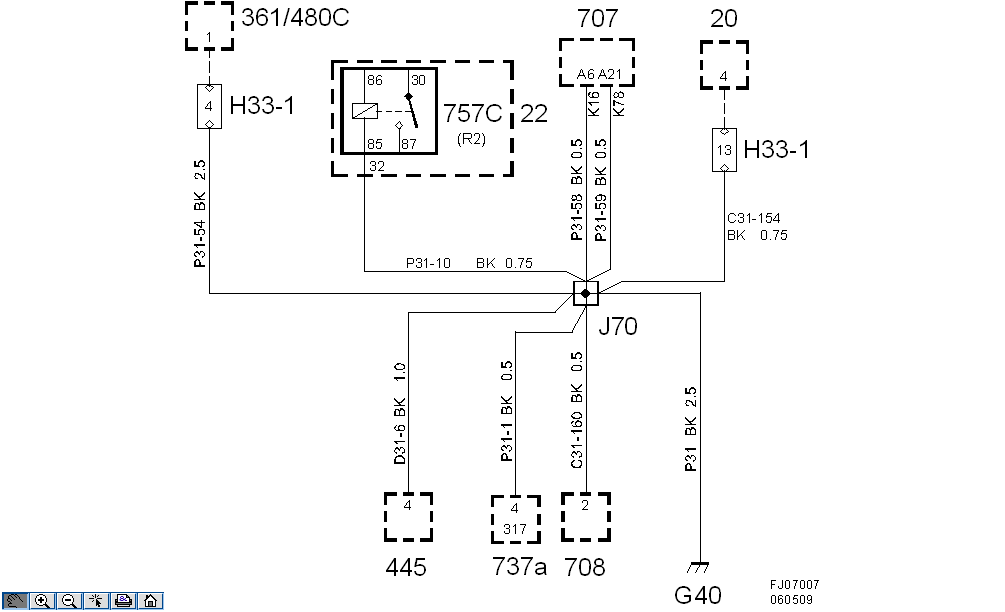

Fig 1: Crimp Connection J70, Instrument Harness - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
