To remove

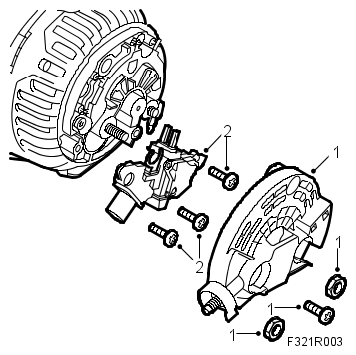

Fig 1: Illustration For Steps 1 And 2

Courtesy of SAAB-SCANIA OF AMERICA, INC.

In the method described below, the generator has already been removed.

1. Remove the protective housing from the generator.
2. Remove the voltage regulator.

The generator brushes are fixed to the voltage regulator. The whole unit must be replaced with a new one.
