Main task

The A/C compressor's electromagnetic clutch connects the belt pulley driven by the belt circuit and the A/C compressor's shaft.

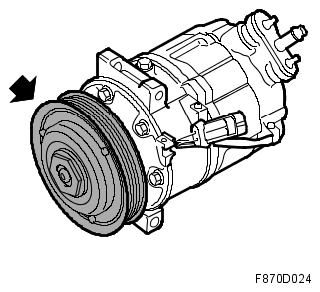

Fig 1: Locating A/C Compressor's Electromagnetic Clutch
G06230495Courtesy of SAAB-SCANIA OF AMERICA, INC.
