Home
>>
Saab
>>
2011
>>
9-3 Turbo4, 2D Convertible, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
TRIONIC T8 Fuel Control System
>>
Component Locator
>>
Connector H102-1
Connector H102-1
Location:
Under the LH A-pillar.

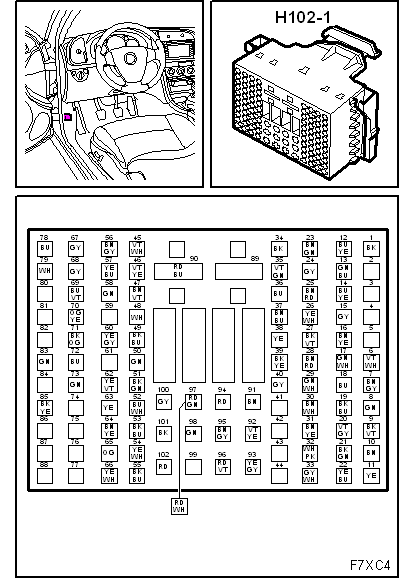

Fig 1: Identifying Connector H102-1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
